Chrome Steel Ball

Wks 1.3505 Chrome Steel Balls for bearing
  • International Equivalent:
  • AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505/ GCr15
  •  To Share:
  • inquiry
    • Wks 1.3505 Chrome Steel Balls for bearing
    • Wks 1.3505 Chrome Steel Balls for bearing
    • Wks 1.3505 Chrome Steel Balls for bearing
    • Wks 1.3505 Chrome Steel Balls for bearing
    • Wks 1.3505 Chrome Steel Balls for bearing
    • Wks 1.3505 Chrome Steel Balls for bearing
Product information:

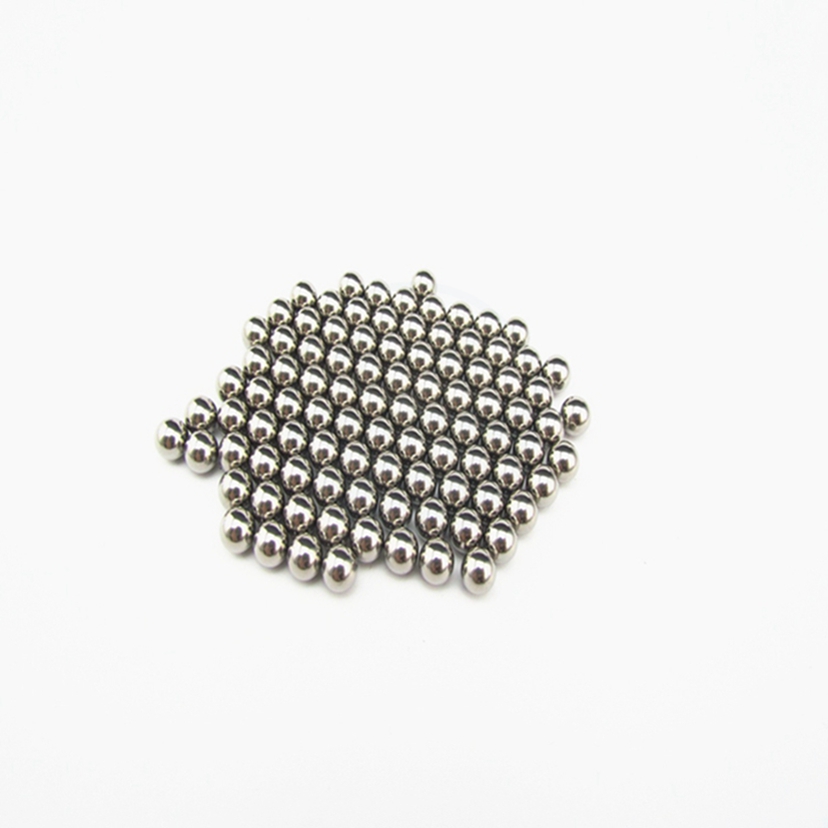

CHROME STEEL BALL
Chrome steel balls are uniformly hardened and tempered throughout their entire diameter to achieve maximum strength and quality. Ball hardness is controlled within the 60-66 HRC range as measured on parallel flat surfaces.

CHROME STEEL BALL

Chrome steel ball/bearing steel ball
1. MaterialAISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
2. Size Range0.6mm-180mm
3. GradeG10-1000
4. Hardness58-65 HRC
5. Characteristic(a)Mainly used in bearings
(b)Good hardness
(c)Good resistance to deformation with excellent wear resistance
(d)Low corrosion
6. MagneticYes
7. ApplicationBall bearings, bicycles, automobile industry
8. Chemical composition
C%Si%Mn%S%P%Cr%Mo%Cu%Al%O%
min.0.930.150.25------1.35------------
max.1.050.350.450.0150.0251.650.10.30.050.0015
9.PackingStandard: 10kg or 20kg per carton,1 ton per pallet or as customer required
10.Conditioningdry or oiled
11.Delivery timeStock within a short time or 35 days.
CHANGZHOU HUARI STEEL BALL CO., LTD.



100Cr6 CHROME STEEL BALLAISI 52100 CHROME STEEL BALL

APPLICATION OF BEARING STEEL BALLS


  • Bearing steel balls are widely used. The main applications are: as rolling elements of bearings, bicycles, car seat slides, CV joints, grinding media, universal wheels, etc.


MORE STEEL BALLS


  • Steel Balls Stainless Steel Balls/ Chrome Steel Balls/ Carbon Steel Balls/ Tool Steel Balls

  • Metal Alloy Balls Aluminum Balls/ Brass Balls/ Copper Balls/ Tungsten Carbide Balls

  • Plastic Balls PP Balls/ POM Balls

  • Torlon Balls

  • Ceramic Balls

  • Special Balls Coated Balls/ Rubber Coated Balls/ Flying Saucer Balls/ Solid Half Balls

stainless steel ballsChrome Steel BallAluminum Balls

Brass ballsCopper BallsTungsten Carbide Balls

Plastic BallsRubber Coated BallTorlon Balls

Coated BallsFlying Saucer BallsSolid Half Balls


PACKING

steel balls


↓↓↓ Please see the PDF below for more chrome steel ball parameters. ↓↓↓


Standard packing:
