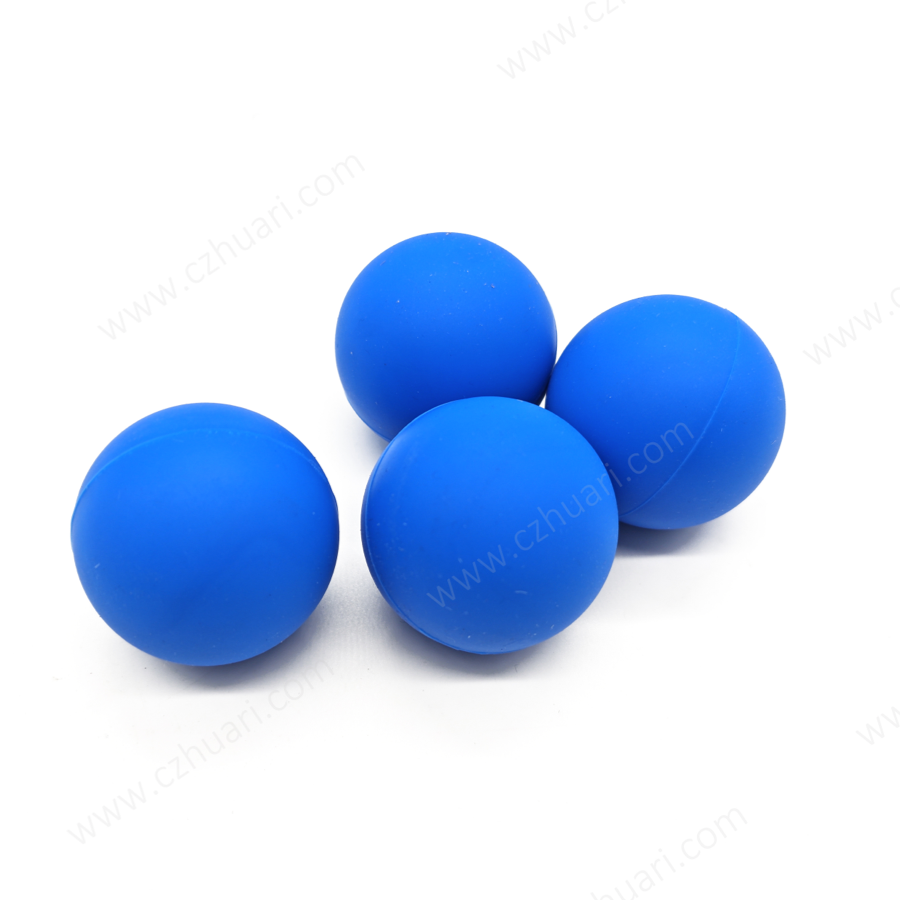

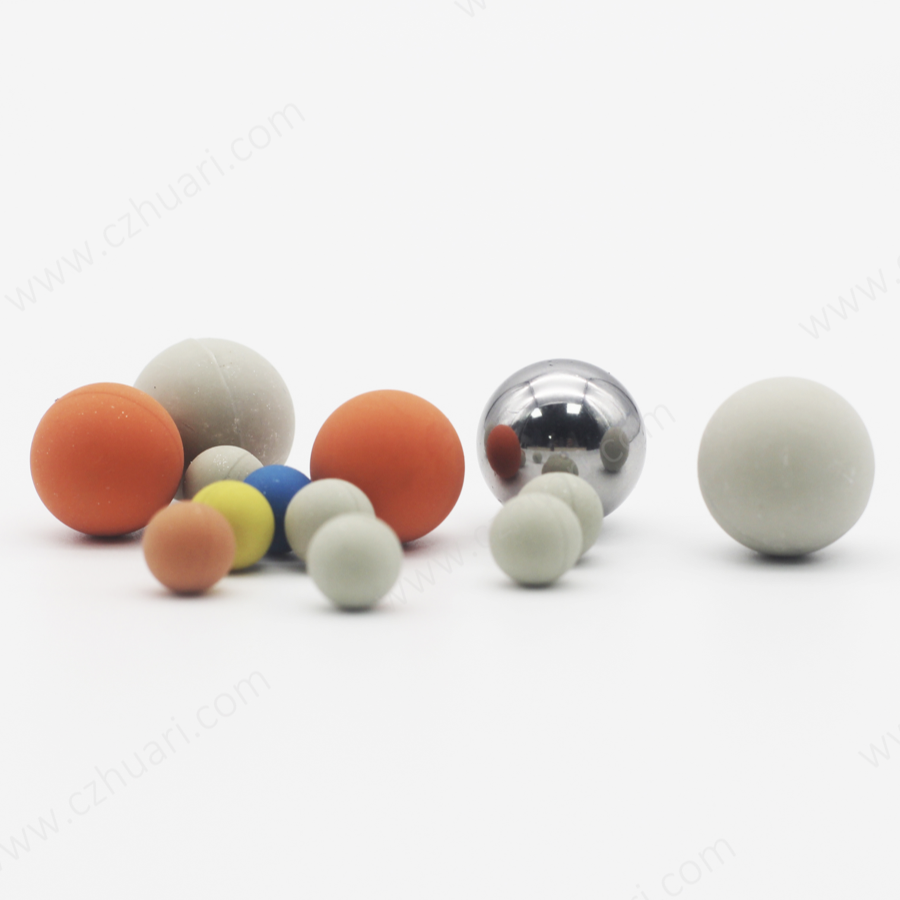

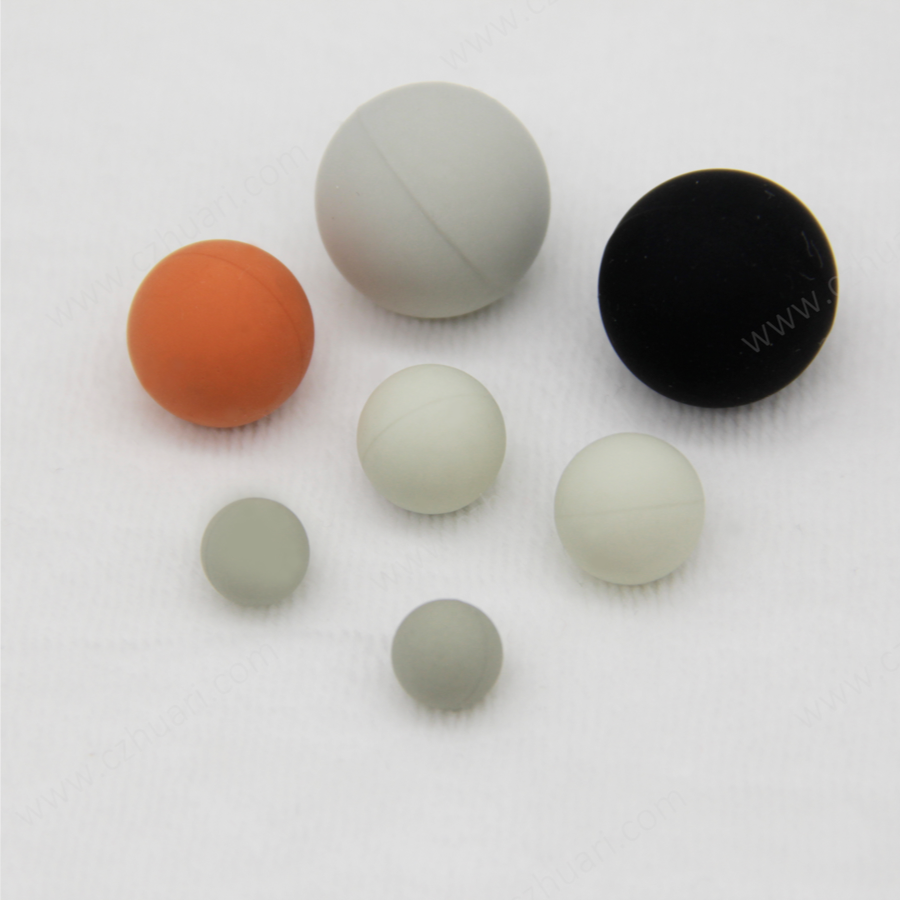

Rubber coated balls combine a carbon steel or stainless steel core with a silicone or polyurethane (PU) outer layer. Ball size, coating material, thickness, hardness and color can be customized for valve components, cooling products, mechanical cushioning and other special applications.
Rubber coated balls combine the strength of a metal core with the cushioning, sealing or contact properties of an elastomer outer layer.

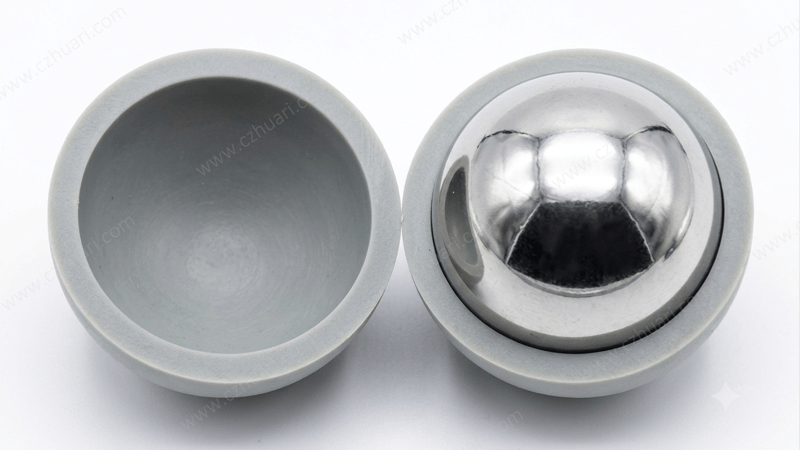

Rubber coated balls are commonly produced with carbon steel or stainless steel cores and coated with silicone or polyurethane (PU). The outer layer can help reduce impact, protect contacting surfaces and provide the required elasticity for different operating conditions.
Common applications include valve components, cooling products, mechanical cushioning and other customized uses. Ball diameter, core material, coating thickness, hardness, color and other requirements can be produced according to samples, drawings or confirmed application details. As each project is different, please contact our sales team for specification confirmation.
| Item | Specification |
| Product Type | Rubber coated metal ball |
| Core Material | Carbon steel or stainless steel |
| Coating Material | Silicone or polyurethane (PU) |
| Common Ball Sizes | 9, 12.7, 15, 18, 20, 22 and 24 mm; other sizes can be evaluated |
| Coating Thickness | Customized according to ball size and application requirements |
| Coating Hardness | Confirmed according to coating material and application |
| Color | Customized where available |
| Surface | Smooth coated surface or as confirmed |
| Production Basis | Customer sample, drawing or confirmed specification |
| Inspection | Ball diameter, coating thickness, appearance and agreed requirements |
| Packing | Cartons, bags or customized protective packaging |
| Delivery Time | Confirmed according to size, coating material, quantity and processing requirements |
| Custom Item | Available Options |
| Core Material | Carbon steel or stainless steel |
| Coating Material | Silicone or polyurethane (PU) |
| Dimensions | Ball diameter and coating thickness |
| Hardness and Color | Confirmed according to application requirements |
| Special Requirements | Evaluated according to sample, drawing or application details |
Other customized requirements can be evaluated according to samples, drawings and application details. Please contact our sales team for confirmation.
